T3A (2nd Gen) AC1200
Multi-Function Wi-Fi Router
- Wi-Fi Class — AC1200 (300Mbps ที่ความถี่ 2.4GHz, 900Mbps ที่ความถี่ 5GHz)
- 5 พอร์ตแบบ 10/100/1000Mbps — 1 พอร์ตอีเธอร์เน็ตขนาดกิกะบิต WAN และ 4 พอร์ตอีเธอร์เน็ตขนาดกิกะบิต LAN เพื่อประสิทธิภาพที่ดียิ่งขึ้น
- 1 พอร์ต USB 2.0 เพื่อการแชร์มีเดียและสำหรับเซิร์ฟเวอร์เครื่องพิมพ์บนเครือข่าย
- เทคโนโลยี Adaptive Beamforming — ให้ประสิทธิภาพสูงสุดผ่านสัญญาณไร้สายเฉพาะที่
- การเข้าถึงได้จากระยะไกลอย่างปลอดภัยเพื่อการรักษาความปลอดภัยและความเป็นส่วนตัวที่เพิ่มมากขึ้น
- รองรับ IPv6 (อินเทอร์เน็ตโพรโทคอลเวอร์ชัน 6)
- รองรับเซิร์ฟเวอร์และไคลเอ็นต์ VPN
- เปลี่ยนโหมดการดำเนินการได้ง่าย
การโรมมิ่งและเครือข่ายแบบเมช
ทรงพลัง แต่เรียบง่าย ไร้รอยต่อ
เทคโนโลยีการโรมมิ่งและเครือข่ายแบบเมชจะเชื่อมต่อกับสัญญาณ Wi-Fi ที่ดีที่สุดที่มีอยู่อย่างต่อเนื่อง ช่วยให้ผู้ใช้ใช้งานได้ทุกที่เมื่อใช้ร่วมกับผลิตภัณฑ์ HUMAX ที่เข้ากันได้

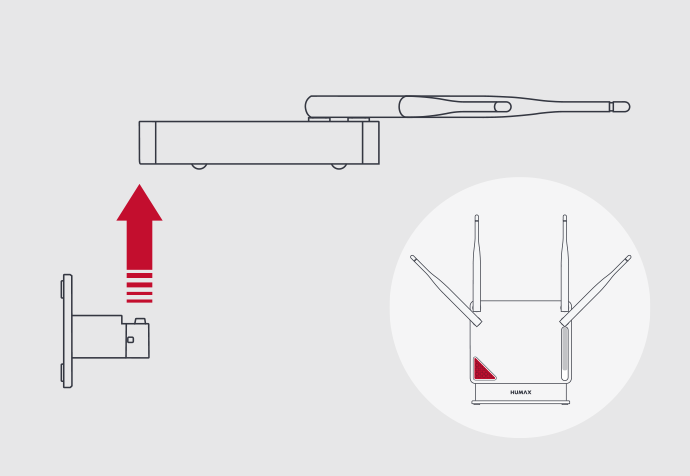

แท่นวาง
ทรงพลัง แต่เรียบง่าย ไร้รอยต่อ
ใช้แท่นวางที่มีให้เพื่อตั้ง T3A ให้ตรง เพื่อช่วยประหยัดเนื้อที่ และได้สัญญาณไร้สายที่ดีขึ้น

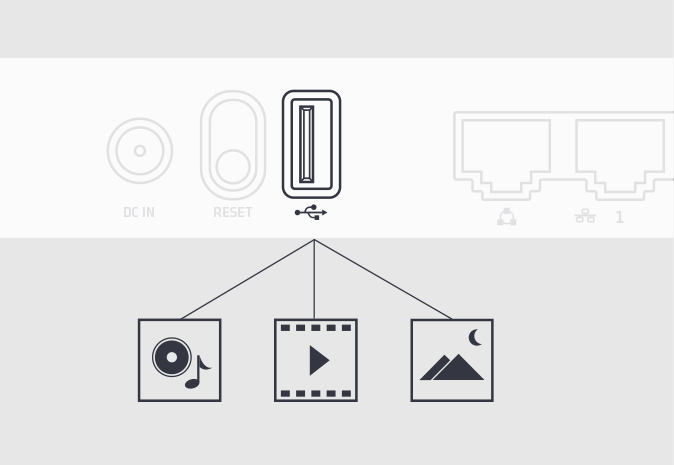

แชร์ได้อย่างง่ายดาย
ทรงพลัง แต่เรียบง่าย ไร้รอยต่อ
แชร์ภาพยนตร์ เพลง และรูปโปรดได้อย่างง่ายดายด้วยฟังก์ชันการแชร์มีเดียของ T3A โดยใช้พอร์ต USB เชื่อมต่อเครือข่ายได้จากระยะไกลเพื่อเข้าถึงและแชร์ไฟล์ได้แม้จะอยู่ที่อื่นก็ตาม

รวดเร็วและเชื่อถือได้
รองรับ 802.11ac — เร็วกว่า 802.11n ถึง 3 เท่าสำหรับการสตรีมเดี่ยว
ความเร็วแบบใช้งานขนาดกิกะ — พอร์ตความเร็วกิกะบิตสำหรับข้อมูลที่ต้องการความเร็วสูง
คุณภาพบริการ — จัดลำดับความสำคัญให้กับปริมาณการใช้เครือข่าย (สตรีมมิ่ง เกม และอื่นๆ)
การแชร์ที่สามารถไว้วางใจได้ — รองรับ FTP, Samba, เซิร์ฟเวอร์มีเดีย และเซิร์ฟเวอร์เครื่องพิมพ์บนเครือข่าย
ปลอดภัย
การเข้าถึงเครือข่ายสำหรับผู้เยี่ยมชม — ให้การเข้าถึงแบบไร้สายแยกต่างหากสำหรับผู้เยี่ยมชม
การควบคุมโดยผู้ปกครอง — จัดการ ป้องกัน และควบคุมการเข้าถึงอินเทอร์เน็ต
เซิร์ฟเวอร์และไคลเอ็นต์ VPN — รักษาความปลอดภัยในการเข้าถึงจากระยะไกลเพื่อความเป็นส่วนตัว
ข้อกำหนดที่ด้านหลัง

ข้อกำหนดด้านเทคนิค
ข้อมูลจำเพาะ |
|
---|---|
Product Category | AC1200 Dual Band Smart Wi-Fi Router |
Wi-Fi Technology | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Wi-Fi Performance | 300Mbps at 2.4GHz, 900Mbps at 5GHz |
Wi-Fi Band | Simultaneous dual band 2.4 & 5GHz |
Antennas | External 2.4GHz 2T2R / 5G 2T2R |
Advanced Wi-Fi Technology | Not applicable |
MU-MIMO | Not applicable |
Beamforming | Improves range & performance plus for both 2.4 and 5GHz devices. |
Number of Ethernet Ports | Five (5) 10/100/1000 (1 WAN and 4 LAN) Gigabit Ethernet ports |
Number of USB Ports | One (1) USB 2.0 port |
Key Features | • AC1200 Wi-Fi (300+900 Mbps) speeds • Roaming & Mesh technology always works connected to the best Wi-Fi signal where users can move room to room and floor to floor. • Entertainment Port - Works as its optimal level to give you a super-smooth, uninterrupted streaming and gaming experience. • Beamforming - Improves range & performance plus for both 2.4 and 5GHz devices • Device Prioritization(QoS) - Automatically recognizes & prioritizes streaming & gaming applications. • Parental Controls to manage web filtering & accessibility by service or devices. • Efficient antenna layout design minimizes signal interference and maximizes wireless performance. • One (1) USB 2.0 port for network data transfers between the router and any USB drive. • Built-in Print Server – Supports wireless printing from multiple computers. • Built-in Media Server – Allows users to play music, video and view photos. • Five (5) Gigabit Ethernet ports - Speeds can be up to 10 times faster than Fast Ethernet. • VPN Server & Client - Secures remote access for privacy. • Easy Web UI - Ensures a quick installation, making your network setup out of hassle. • Easy Setup - Assistant with multi-language support provides quick & hassle-free installation. • Guest network Access - Provides separate Wi-Fi network for your guest. • Wall Mountable - Provides more options as to where you can put the router. • IPv6 support ready (Internet Protocol Version 6) • WPS |
Security | • Secure Wi-Fi Encryption - WPA-PSK, WPA2-PSK, WEP(64/128bit) • Guest network Access - Provides separate Wi-Fi network for your guest. • Double firewall protection (SPI and NAT) • Parental Controls to manage web filtering & accessibility by service or devices. • Firewall protection - MAC/IP/Port/URL Filtering, Port forwarding, DMZ and more. |
Processor | 660MHz single-core |
Memory | 8MB flash and 128MB RAM |
Physical Specifications | • Dimensions (WxDxH): 8.7x6.6x3.4 in. (221x168.5x86 mm) • Weight: |
Package Contents | • HR2214A • Power Adapter, localized to country of sale • Ethernet Cable • Quick Start Guide • A-Guide (Roaming&Mesh, Q-MODE) • Cradle |
System Requirements | Microsoft® Windows 7, 8, 8.1, 10, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux® Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher |
คำถามที่พบบ่อย
How to log in HUMAX router’s setting interface?
Step 1
Use an Ethernet cable to connect your computer to one of the LAN ports (Orange port) at the back panel of the router.
(It is suggested to use a wired connection than wireless if you are going to change the router’s wireless settings or upgrade the firmware version of the router.)
Step 2
Open the web browser and in the address bar type enter default access IP and then press Enter.
(The default access IP of HUMAX routers is //192.168.1.1)

Step 3
Type the username and password in the login page. Refer to the default login username and password at the bottom of your product.

Step 4
Please check the Easy Setup page open.

Note:
If you forgot ID and Password, please try again after factory default setting.
How to change Login User Name and Password?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page

Step 3
Click on Management ->Change Password on the left side, then you can change the router’s username and password on this page.

Step 4
Click Apply button, then you will view router status page and when you open another setting page, you can see the User Login page.
Note: Do not forget the new username and password. If you forgot them, you need to factory default setting.
What can I do if I forget the login password of router?

Step 1.
When the device is running, press the reset button on the rear panel using a pin for 10 seconds or more.

Step 2.
Release the reset button and wait for the device to reboot.
Note:
After reset to factory default, the default IP address is 192.168.1.1 and the default login username and password both are the same as above.
How to reset the current configuration to factory default?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page

Step 3
Click on Management -> System Configuration on the left side, then click Factory Default button.

Step 4
Click OK and wait for few seconds to finish resetting.

Note:
After reset to factory default, refer to the default login username and password at the bottom of your product.
How do I physically connect my router?
Plug in the cable modem power adapter and check the working of cable modem.
Step 2
Connect the HUMAX Wireless Router to the modem. Plug one end of an Ethernet cable to the modem and the other end into the internet port on the router. The internet port is yellow.

Step 3
Connect the router to the computer. Plug one end of an Ethernet cable into the computer Ethernet port and the other end into any one of the four LAN ports on the router.


Step 4
Plug in the router power adapter and check working of your Internet.
What’s MAC address clone used for and how to configure?
Step 1
Connect you PC to the router by cable or wireless.
Step 2
Log into the router’s web interface.
Step 3
Click Advanced Setup button of the Easy Setup page
Step 4
Click Network ->WAN settings -> MAC Clone button
Step 5
Click Apply

How to Configure Router’s Easy Setup?
Log into the router’s web interface.
Step 2
First, the Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.

Step 3
Choose the WAN Access Type, enter User Name, Password provided by your ISP. Set an encryption method and password for your WiFi network.

Step 4
Click Apply to make the settings work.
How to change the SSID of router?
Method 1
Use the Easy setup to Change.
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
The Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.

Step 4
Choose 5G Wireless Setting or 2.4G Wireless Setting, and input the new SSID, set the password for it and click Apply.

How to encrypt my wireless network?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
Click Wireless 5GHz -> Basic Settings on the left side, then you can change Encryption on this page.

Step 4
If you change the Encryption type and input password key, Click Apply button.
Note:
1. WEP-Open System, WEP-Shared Key, WPA-PSK, WPA2-PSK and WPA/WPA2-PSK are provided for your, for better security, WPA/WPA2-PSK is recommended.
2. The Wireless 2.4GHz setting is the same as Wireless 5GHz setting.
What to do when you can’t find the router’s WiFi signal?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
Click Wireless 5GHz -> Primary Network on the left side, then check if the Radio On/Off is Enable.

Note:
The Wireless 2.4GHz setting is the same as Wireless 5GHz setting.
What can I do if I forget the password for WiFi connection?
Method 1
If you know the user ID and password for interface of router, you can change WiFi password.
Step 1
Log into the router’s web interface.
Step 2
The Easy Setup page will turn up for basic and quick settings, including Internet Setting and Wireless Setting.

Step 3
Choose 5G Wireless Setting or 2.4G Wireless Setting, and set the password for it and click Apply.

Note:
For better security, WPA/WPA2-PSK is recommended.
Method 2
If you do not know user ID and password, you need reset it to factory default and configure it as a new one.
Step 1.
When the device is running, press the reset button on the rear panel using a pin for 10 seconds or more.

Step 2.
Release the reset button and wait for the device to reboot.
Note:
After reset to factory default, the default IP address is 192.168.1.1 and refer to the default login username and password at the bottom of your product.
How to connect to wireless networks on various operating systems?
For Windows XP:
Step 1
Open Control panel, select and double click Network Connections.
Step 2
Right click Wireless Network Connection, select and click View Available Wireless Networks.

Step 3
Click Refresh Network list to view available wireless networks. Select the one you would like to connect; double click it or click Connect button.

Step 4
If the wireless network is secured, there will pop up a window requiring key/password.

Step 5
Enter the correct Key/Password then click Connect. In a short while, a wireless connection is set up.

For Windows Windows 7/Windows Vista:
The process regarding wireless connection is quite similar on these two platforms.
Step 1
Click Start -> Control Panel, Select and click Network and Sharing Center (or Network and Internet-> View network status and tasks)
Step 2
Now on Widows 7, click Change adapter settings.

On Windows Vista, click Manage network connections.

Step 3
Select wireless network connection, right click it and select Connect/Disconnect.

Step 4
At the lower right corner, there pops up a window displaying Wi-Fi signals around. Click Refresh button


Step 5
If that is a secured network, a password or security key will be requested. Put in your Wi-Fi password and click OK.

In a short while, you can see the Wi-Fi icon in the task bar showing that it is connected.

For Windows 8:
Step 1
Click the Wi-Fi icon at the lower right corner in the task tray, and it will bring out a list of all the available wireless signals nearby;

Or you can get this Wi-Fi list via control panel as instructed below:
1) Press “windows key +X” on the keyboard, and choose “Control Panel”;

2) Now navigate your way to Wi-Fi connection by way of “Network and Internet and Network and Sharing Center and Change Adapter Settings”



3) Right click on “Wi-Fi” and choose “Connect/Disconnect” and now you can see all the wireless networks around.

Step 2
Choose your Wi-Fi network and press “connect”;
Step 3
If that is a secured network, a security key will be required. Type in your wireless password and press next;

Now it is connected.

Note: If your Wi-Fi network is open, you may see a box like below, just select “No, just connect”.


Now it is connected.

For Windows 10:
Step 1
Click the Wi-Fi icon at the lower right corner in the task tray, and it will bring out a list of all the available wireless signals nearby;

Or you can get this Wi-Fi list via control panel as instructed below:
1) Press “windows key +X” on the keyboard, and choose “Control Panel”;

2) Now navigate your way to Wi-Fi connection by way of “Network and Internet”--- “Network and Sharing Center” --- “Change Adapter Settings”;
3) Right click on “Wi-Fi” and choose “Connect/Disconnect” and now you can see all the wireless networks around.

Step 2
Choose your Wi-Fi network, check “Connect automatically” and press “connect”;

Step 3
If it is a secured network, a security key will be required. Type in your wireless password and press “next”;

Now it is connected.

How to forget its profile?
Solution 1
Step 1
Click the Wi-Fi icon at the lower right corner in the task tray, and click “Network settings”;

Step 2
Then please click on “Wi-fi” and find “Manage Wi-fi settings” on the left menu;

Step 3
Highlight the wifi and click on “Forget”;

Step 4
Then please click on the “back” icon on the top and choose the wifi that you want to connect.


Solution 2
Step 1
Please go to the control panel page, and please click on “Network and Internet”--“Network and Sharing Center”--“Change Adapter Settings”(on the left)”;
Step 2
Then right click on “Wi-Fi” and go to “Connect/disconnect”;
You will see the same “Network and Internet” window showed on the step2 of the Solution1, so please go the same process to forget profile.
For MAC OS:
There are two ways to connect to a wireless network on MacBook.
Method 1:
Step 1
Click the Wi-Fi icon in the very top task bar of your MacBook and choose your Wi-Fi network.

Step 2
Put in your Wi-Fi password and click on Join.

Method 2:
Step 1
Navigate your way to Wi-Fi connection via



Step 2
Click network and drop down the Wi-Fi menu; choose your Wi-Fi network among all others. Here we take “tplinkwifi” as an example.

Step 3
Fill in the password which is case sensitive and press Join.

Finally, Wi-Fi status shows Connected when the wireless connection is successfully set up.

For iOS:
Step 1
Tap on settings

Step 2
Tap on the WLAN; make sure Wi-Fi is on and then tap on your own Wi-Fi network

Step 3
Key in your Wi-Fi password and tap on Join.

Step 4
A check mark appears next to the Wi-Fi network when it is connected.

For Android:
Step 1
Go to Settings and turn on Wlan, which may also be named Wireless and Networks or Wi-Fi.


Step 2
Enter Wireless and Network/Wlan/Wi-Fi and choose the Wi-Fi network you want to connect; Input your Wi-Fi password which is case sensitive, and connect.


Step 3
Now the Wi-Fi shows “connected” and Wi-Fi symbol turns green; It’s ready to use.


How do I check the Firmware version on router?
Step 1
Log into the router’s web interface.
Step 2
Easy Setup page will turn up, then you can see the model name and firmware version.

How to upgrade router’s firmware to the latest version?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
Click Management -> Update Firmware on the left side, then click Browse button.

Step 4
Choose latest firmware for upgrade and click the open button.

Step 5
After check the selected file, Click the Update button. After the router reboots, upgrade procedure finished.

Note:
DO NOT power off the device or close the browser window during the upload because it may crash the system.
How to configure port forwarding on the router?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
1. Click Firewall -> Port Forwarding on the left side.
2. Change the Port Forwarding Disable/Enable to Enable.
3. Select Protocol Type.
4. Type the IP Address of your device that you want to open the port.
5. Type the Internal Port which you want to open.
6. The Remote IP Address you can put in the blank.
7. Click the Apply button.

Step 4
Check the current Port Forwarding Table you typed.

Note:
Since the Forwarding rules are related to IP Address of the device, it is suggested to set up a static IP for your device that needs to open the ports.
How to configure DDNS on the router?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
1. Click Management -> DDNS Setting on the left side
2. Change the DDNS Disable/Enable to Enable.
3. Enter the DDNS Service Provider, Domain name, User Name/Email and password key in the blank space.
4. Click the Apply button.

How to configure QoS on the router?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
Easy Setup page will turn up, then click Advanced Setup button.
Step 4
1. Click QoS on the left side.
2. Change the QoS On/Off to Enable.

Step 5
1. Click Scan to find IP address.

Step 6
After you select the desired IP, click the OK button.

Step 7
Input Connection limit and Comment

Step 8
You can check the status.

How to configure remote access?
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
1. Click Management and Remote Access on the left side.
2. Change On/Off to Enable.
3. Type Port ( Default is 80 )
4. Click Apply.

How to select Operation Mode?
[ Bridge Mode ]
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
1. Click Operation mode
2. Select Bridge Mode
3. Click Apply

[ Repeater Mode ]
Step 1~2
The same as above.
Step 3
1. Click Repeater Mode
2. Select 2.4G or 5G
3. Click Apply

Step 4
Click Scan to search Network to access.

Step 5
Select one of the Network and click OK.

Step 6
Click Connect.

How to configure multiple AP’s
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
1. Click Wireless 5GHz and Guest Network on the left side.
2. Type Network Name.
3. Change Security to WPA/WPA2-PSK and select Hide SSID if you want.
4. Type password and click Add.

Step 4
You can find out the list and add the network up to 2.

How to configure FTP Service?
Please make sure that USB flash disk or hard drives are plugged it into the USB port of the router before the steps.
Step 1
Log into the router’s web interface.
Step 2
Click Advanced Setup button of the Easy Setup page.
Step 3
1. Check if USB light is turned on the top right side.
2. Click USB Storage.
3. Change On/Off to Enable on FTP Sever menu.
4. Type User Name and Password.
5. Click Apply.

Step 4
Type ftp://192.168.1.1 in the address bar of My Computer or the web browser.

Step 5
Type User name and Password that you have set before and click Log On.

Step 6
You can access data on the USB stick or storage disk.

How to do reset?
Step 1.
When the device is running, press the reset button on the rear panel for 10 seconds or more.

Step 2.
Release the reset button and wait for the device to reboot.
Note:
After reset to factory default, the default login username is “admin” and password is the 4 serial number at the bottom of your product “nnnn”.
